Roam Marine Monitor
Roam Marine Monitor

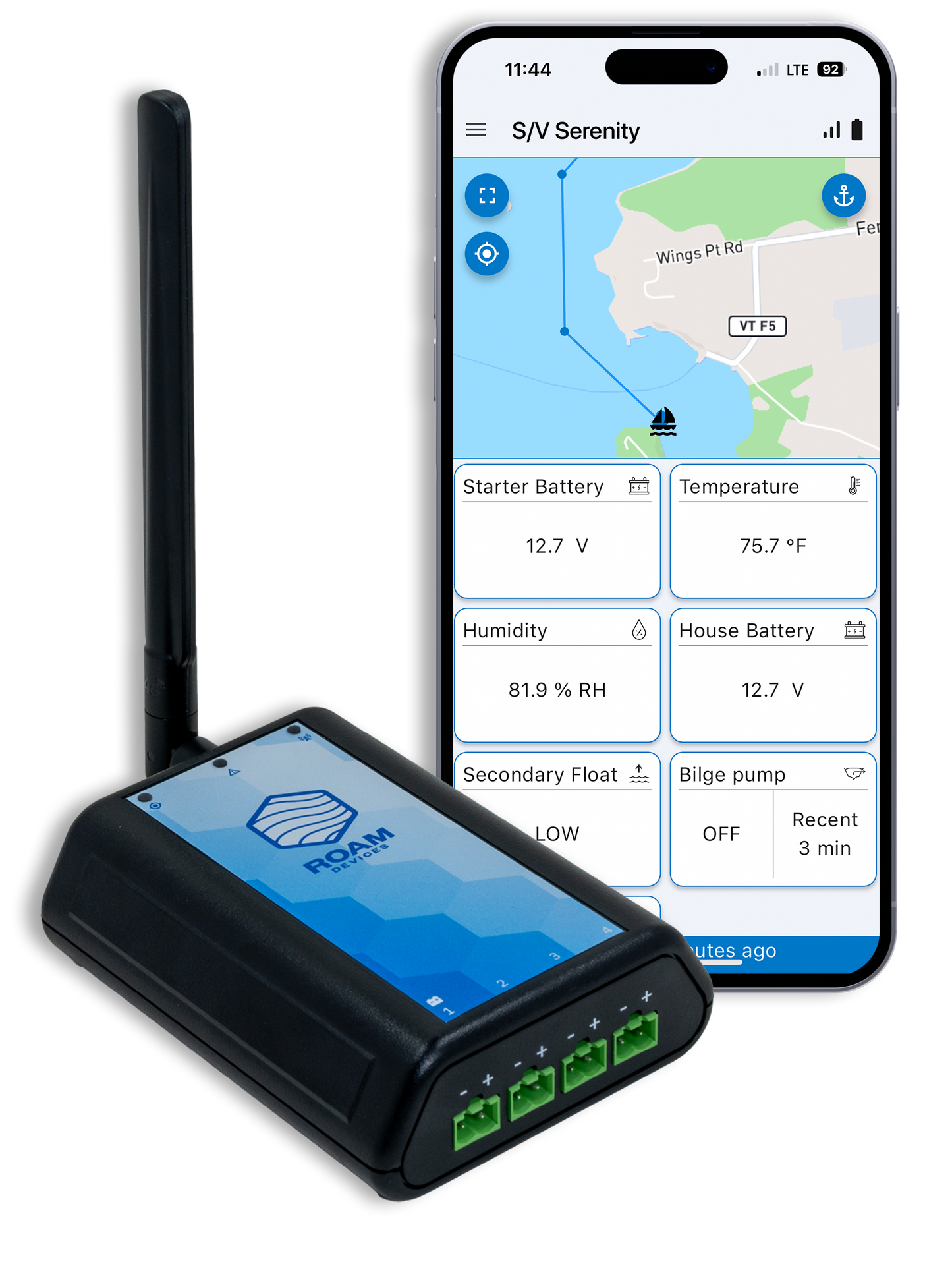

Boaters can stay informed and secure with the Roam Marine Monitor, an innovative, cost-effective cellular connected device. Get real-time data to monitor essential parameters, including voltage, humidity, temperature, bilge pump status, and accelerometer readings. Easily integrate sensor data into your boat for remote monitoring and alert notifications, plus access detailed status from anywhere in the world. Stay aware of battery health, bilge pump activity, and fluctuations in temperature, humidity, and accelerometer readings.
Share

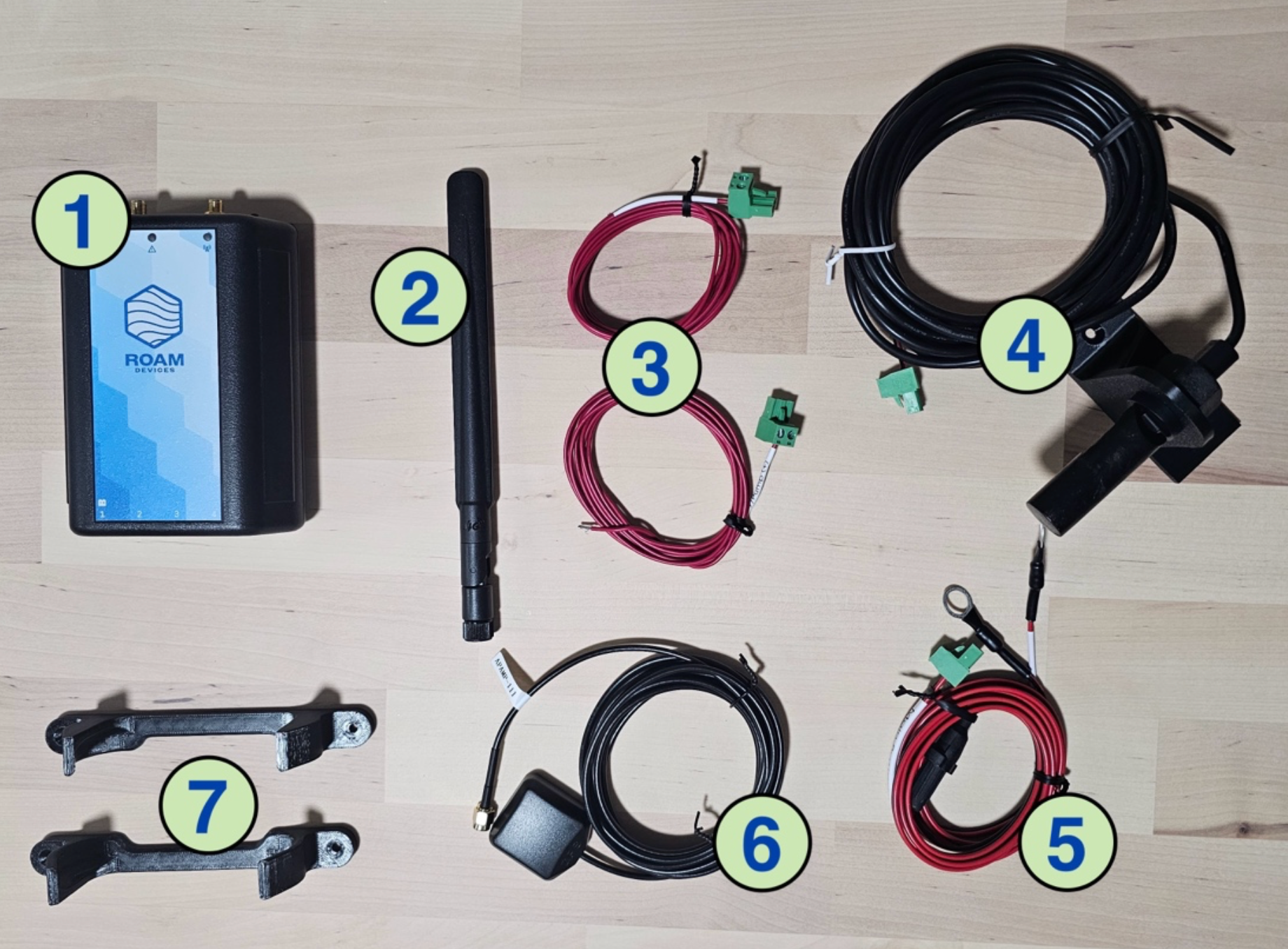

Kit Includes
1) Roam Marine Monitor Hub
The primary hub includes ambient temperature, humidity sensors along with sea state monitoring and a backup battery. All sensors connect to the bottom of the device and can be custom configured to meet your specific needs.
2) LTE-M Cellular Antenna
3) Secondary Battery or Pump Sensor x2
Wire these sensors into your second battery bank or bilge pumps for continual status. If you are connecting to your bilge pump we often recommend connecting to the manual bilge pump switch and the 6' wire is often more than enough. If you feel you will need more wire then order the 18' version for extended connection flexibility.
4) High Water Float Switch
Our high water float switch is custom built to provide a normally closed signal to our hub. Unlike many other float switch alarms this allows us to alarm if there is a problem with the wire to increase confidence in a high water event alarm. The float switch comes with a 15' wire.
5) Main Battery Supply Sensor
The main battery supply cable is 6' and is typically connected to your house batteries either at the battery or on a main bus bar in the electrical panel. The Roam Monitor both monitors battery voltage and uses this connection for it's primary power source.
6) GPS Antenna
Our GPS antenna comes with a 10' cable to allow for easy installation. The GPS antenna can be installed inside a fiberglass boat but should be kept away from metal and installed with the sticky side facing earth.
7) Mounting Brackets
Two mounting brackets and associated screws are included for quick mounting of the product.
Technical Specifications
Operating Input Voltage | 5-32 VDC |
Power Draw | 0.3W (0.030A @ 12V) |
Internal Battery Capacity | 2600mAh |
Battery Certification | UN 38.3 |
Runtime on Internal Battery | 48 hours with GPS Enabled Up to 28 Days with GPS Disabled |
Physical Dimensions | 5.0 in x 3.8 in x 1.5 in (127 mm x 97 mm x 38 mm) |
Storage Temperature | -40ºF to 160ºF |
Operating Temperature | -22ºF to 149ºF |
Cellular | LTE CAT M1 Bands: B2, B4, B5, B12, B13, B25, B26, B66 |
Local Wireless | 2.4Ghz |
GPS Positioning | GNSS External Antenna |
Certifications | FCC Part 15B PTCRB |
Internal Sensors | Temperature Humidity Accelerometer (Sea State) |
Audible Alarm | Piezo Internal to Hub |
External Inputs | Input 1: Main Supply and Voltage Sense Input 2-4: Voltage/Pump/Float Switch |
Thrilled with this monitoring system. Was easy and uncomplicated to install and gives you valuable information about your boat while away or at anchor. Two major things for me is knowing when my bilge pump turns on and using it as an anchor alarm when anchored overnight. It has a lot of other information as well, including boat motion, lets you know how much your boat is moving. Really cool and just great peace of mind and for a very reasonable price. Thanks.
This is exactly what I was looking for. Great value and it works!
I bought my Roam device at the Annapolis Boat Show. I stopped in to see what they had and decided to take one home with me. My boat is at the dock 3 hours away and yes I worry about it. I was impressed with the booth personnel and their understanding of what boaters were looking for. Admittedly my GPS was not working as well as I expected (my fault) but they assured me that improvements were on the way. I have been impressed with the new update and the GPS accuracy. I have recommended this to all of my friends. I like the fact that it is at a reasonable price point and it WORKS. I sleep a lot better knowing that I can just pull up the app and know whats happening at the marina.
Thanks JD
I bought mine on a spur at the Annapolis Sailboat Show and installed it that very same night (while anchored out in the Chesapeake)... and ever since it has given me piece of mind and continued observability into my sailboat! The team was great with any help when installing and is always open to feedback or help if you notice a bug! Cannot wait to see what new features and enhancements Roam comes out with!
I've activated my Roam device and have been using for past month. Currently, have battery monitor, temp, humidity, high water float setup. I'll be installing bilge pump monitor in two weeks. Installation and activation were extremely simple. Roam has performed flawlessly, providing accurate house bank voltage (confirmed with onboard battery monitor), timely updates to the mobile device monitoring software. Testing multiple alerts for house bank low voltage alarm, bilge high water alarm. Additional features: GPS location and looking forward to testing and using the anchor alarm. This is an excellent monitor at a very reasonable price! Thank you Roam!
